Specification |
CK0640 |
|
Max.swing over bed |
260mm |
|
Diameter of X axis ballscrew |
25mm |
|
Thread pitch of X axis ballscrew |
4mm |
|
Diameter of Z axis ballscrew |
32mm |
|
Thread pitch of Z axis ballscrew |
6mm |
|
X-axis travel |
250mm |
|
Z-axis travel |
180mm |
|
Pneumatic components |
Taiwan AIRTAC |
|
chuck |
Pneumatic (32mm) |
|
toolpost |
4 position Electrical toolpost |
|
Max.Speed |
2200rpm |
|
Main Motor |
3KW |
|
Spindle converter |
VEICHI |
|
Motor for Coolant pump |
90W |
|
Spindle bore |
49mm |
|
Spindle hole after install pneumatic |
41.5mm |
|
Re-positioning accuracy |
0.01mm |
|
positioning accuracy |
0.01mm |
|
Servo motor torque |
4.0NM |
|
Servo motor type |
Absolute value servo motor |
|

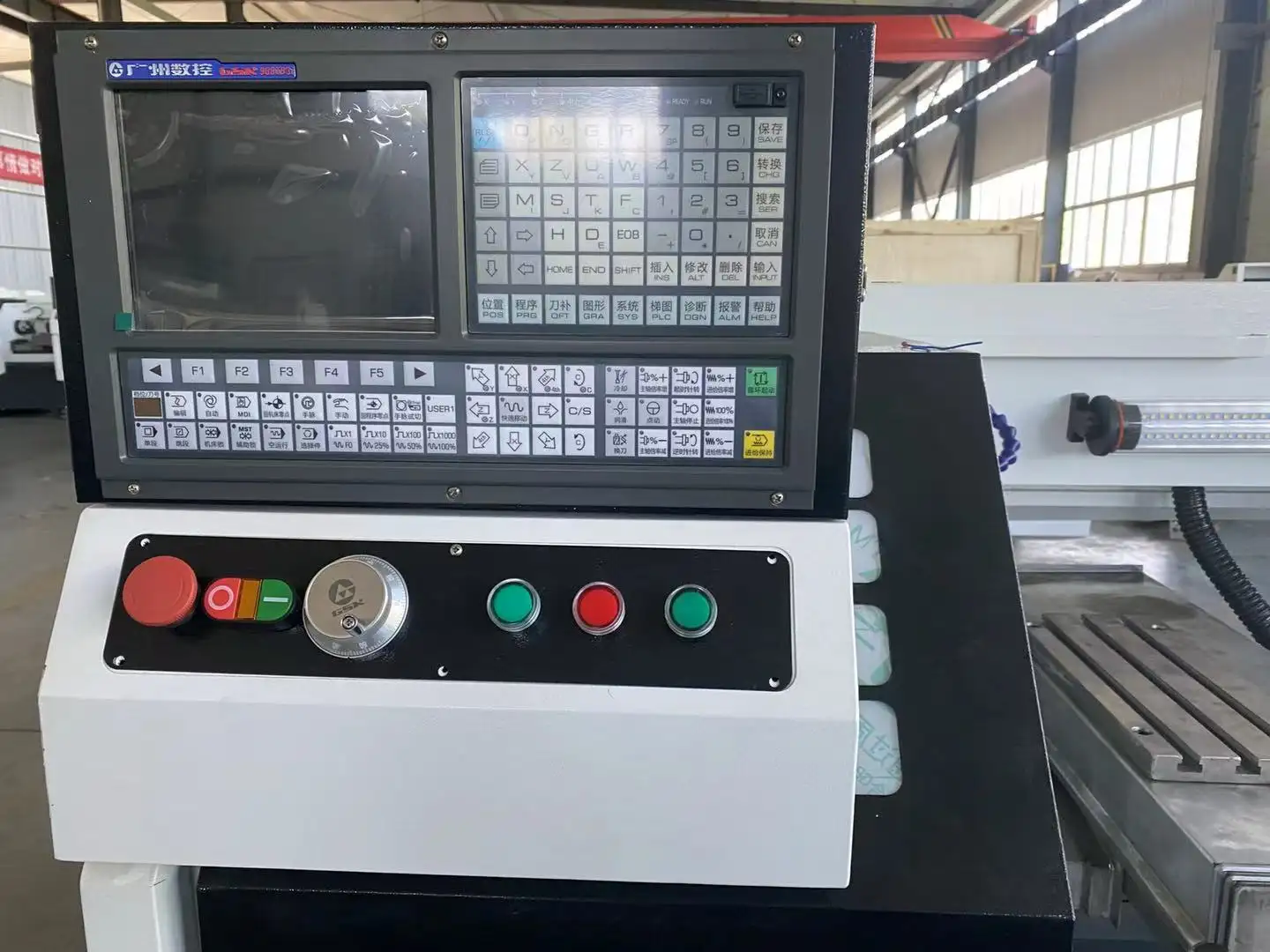

CNC controller system |
GSK system |
|
Button switch |
LED metal switch |
|
Machine dimensions(L*W*H) |
1760*1070*1730mm |
|
N.W/G.W |
700KGS/800KGS |
Standard Configuration
STANDARD CONFIGURATION
1) System:GSK, servo motor and drive.

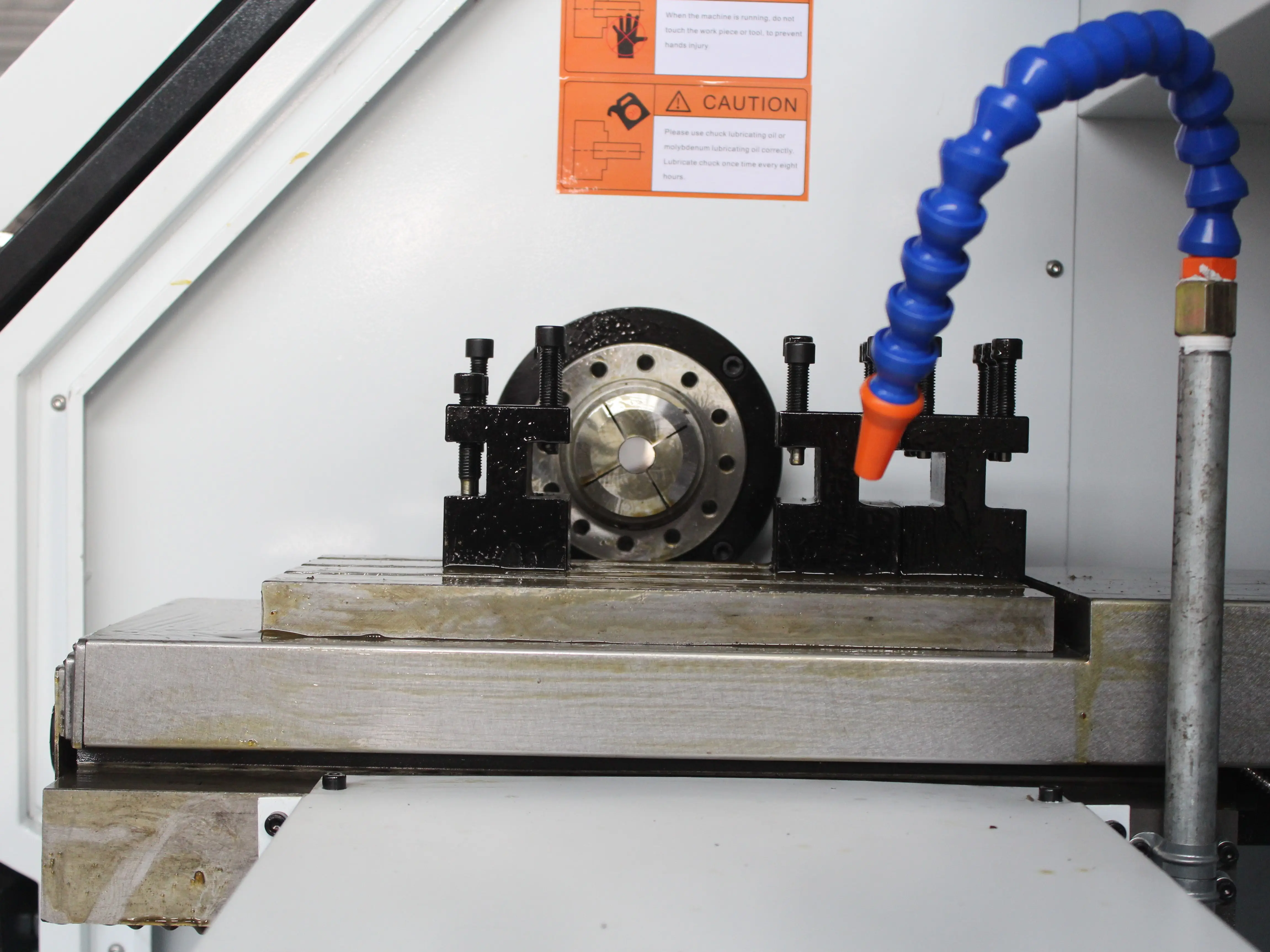

2) Pneumatic collets.

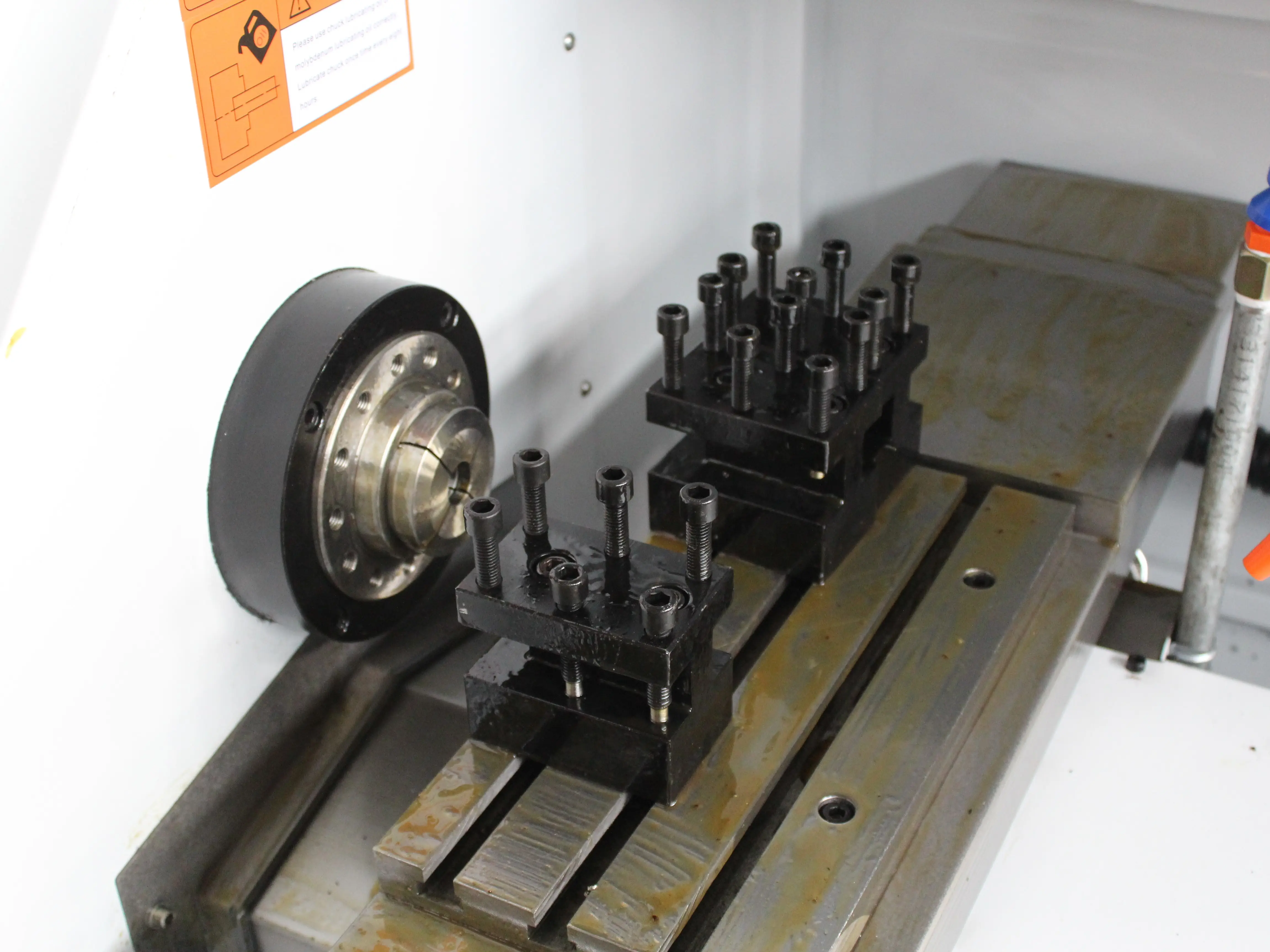

3) Gang Type Tool.
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.
OPTIONAL CONFIGURATION
1) CNC system: Siemens, Fanuc, KND.
2) Hydraulic chuck, pneumatic chuck ..
3) Hydraulic tailstock, pneumatic tailstock.
4) 4/6/8station electric tool post.
5) Automatic bar feeder.
