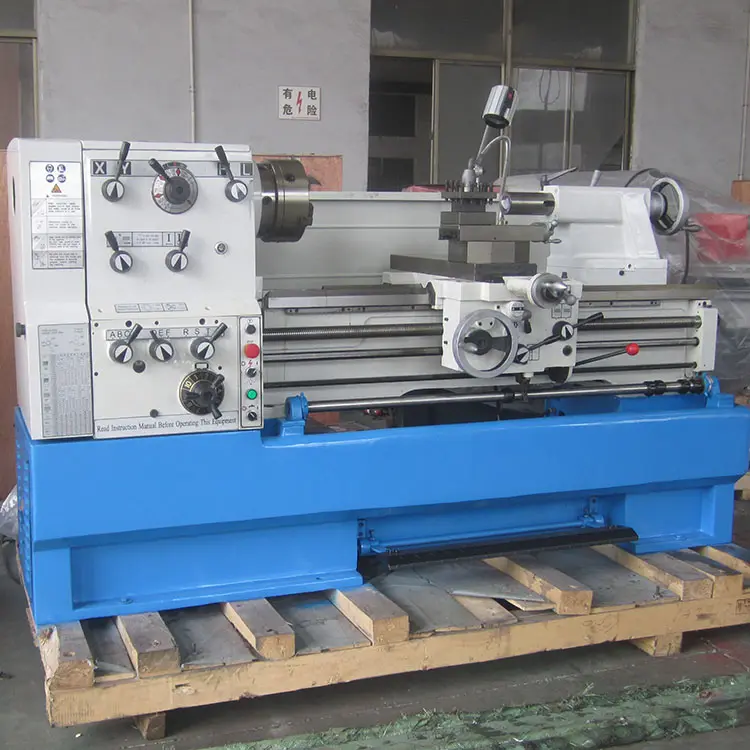

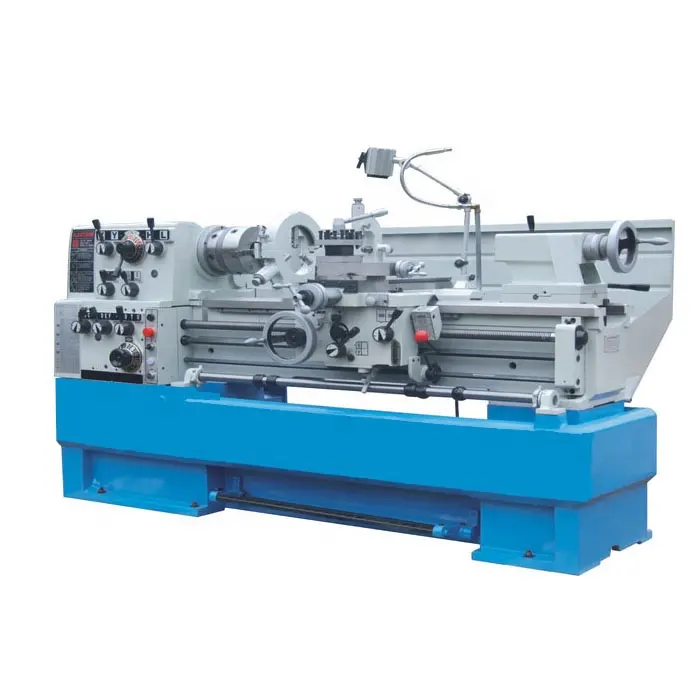

Model

C6136/C6236x1000mm

Swing over bed

360mm

Swing over cross slide

206mm

Swing in gap diameter

490mm

Length in gap

130mm

Length between centers

1000mm

Center height

180mm

Width of bed

218mm

Taper in nose

MT6

Spindle nose

D1-5

Spindle bore

52mm

Speeds range

65-1810mm

Compound rest travel

76mm

Cross slide travel

200mm

Leadscrew thread

3mm pitch

Leadscrew diameter

24mm

Cutting tool max section

16x16 mm

Longitudinal feeds metric

0.053-1.291mm/rev(40Nos.)

Longitudinal feeds imperial

0.002-0.051"/rev(40Nos.)

Cross feeds metric

0.011-0.276mm/rev(40Nos.)

Cross feeds imperial

0.001-0.011"/rev(40Nos.)

Thread metric pitches

0.4-7mm

Thread imperial pitches

60-4 T.P.I

Thread diametral pitches

44-16.DP

Thread module pitches

0.4-3mm

Quill diameter

32mm

Quill travel

100mm

Quill taper

MT3

Main motor power

1.5KW(50HZ)

Coolant pump power

40W(50HZ)

Machine packing size

2010x870x1560mm

Left stand packing size

420x420x620mm

Right stand packing size

320x420x620mm

NW/GW(kg)

640/740 kgs
