Brand:Haosheng
Product origin:China
Delivery time: 7-14 days
|
Model |
HW1000 |
HW1500 |
HW2000 |
HW3000 |
|

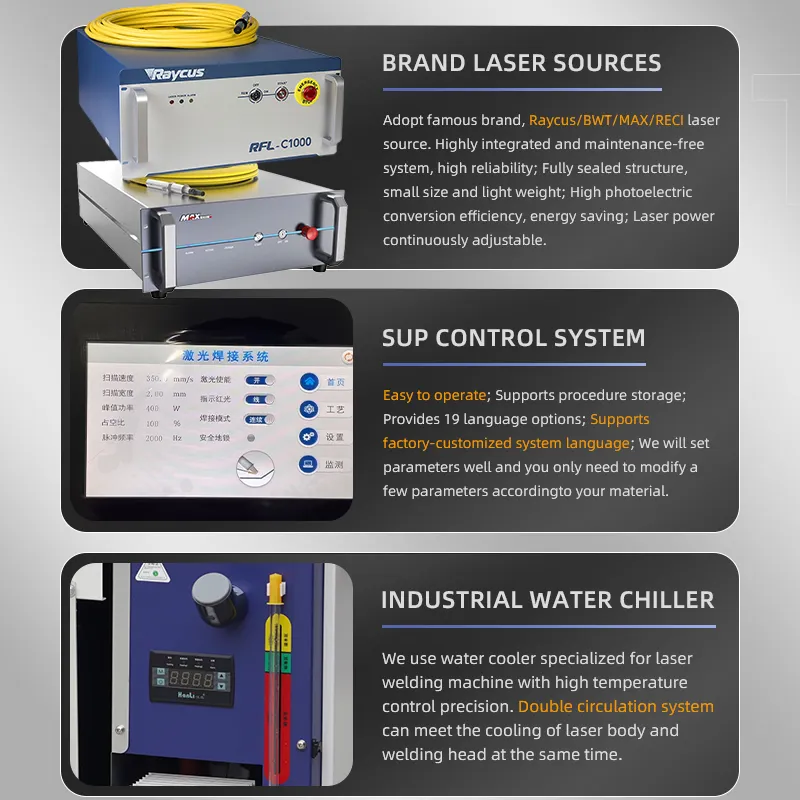

Laser Source |
Everfoton/Raycus/MAX/BWT |
Everfoton/Raycus/MAX/BWT |
Everfoton/Raycus/MAX/BWT |
Everfoton/Raycus/MAX/BWT |
|
Laser Power |
1000w |
1500w |
2000w |
3000w |
|
Laser Source Type |
CW Fiber Laser |
CW Fiber Laser |
CW Fiber Laser |
CW Fiber Laser |
|
Power Adjustment Range |
10-100% |
10-100% |
10-100% |
10-100% |
|
Laser Wavelength |
1080±10nm |
1080±10nm |
1080±10nm |
1080±10nm |
|
Modulation Frequency |
20khz |
20khz |
5khz |
5khz |
|

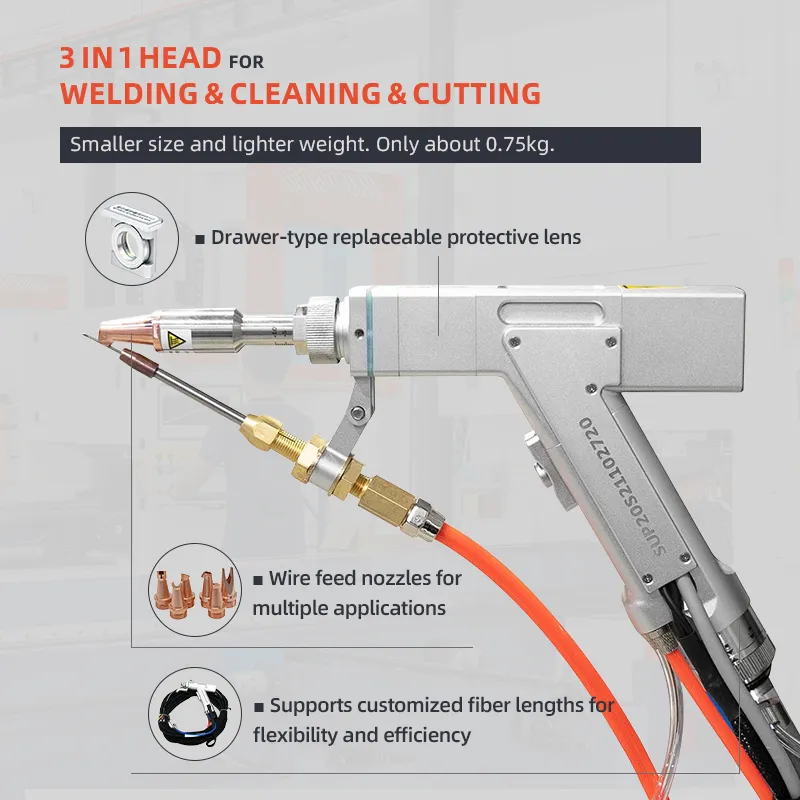

Laser Welding Head |
Super/Relfar |
Super/Relfar |
Super/Relfar |
Super/Relfar |
|
Welding Speed |
0-120mm/s |
0-120mm/s |
0-150mm/s |
0-150mm/s |
|
Scan Width Adjustable |
0.1～6mm |
0.1～6mm |
0.1～6mm |
0.1～6mm |
|
Gas Requirements |
10-15L/min（Ar/N2） |
10-15L/min（Ar/N2） |
10-15L/min（Ar/N2） |
10-15L/min（Ar/N2） |
|
Cooling Method |
Air Cooling |
Water Cooling |
Water Cooling |
Water Cooling |
|
Optical Cable Length |
7m/10m/15m |
7m/10m/15m |
7m/10m/15m |
7m/10m/15m |
|
Operating Voltage |
AC220V 50/60Hz |
AC220V 50/60Hz |
AC220V 50/60Hz |
AC380V 50/60Hz |
|
Ambient Temperature |
10～45 ℃ |
10～45 ℃ |
10～45 ℃ |
10～45 ℃ |
|
Environment Humidity |
10%-85% |
10%-85% |
10%-85% |
10%-85% |
|
Energy Consumption |
3.8KW |
5.5KW |
7.0KW |
10KW |
|
Machine Size |
1000mm*650mm*720mm |
1000mm*650mm*720mm |
1000mm*650mm*720mm |
1140mm*750mm*1050mm |
|
Net Weight |
105kg |
110kg |
120kg |
175kg |
|
Wire Feeding Diameter |
0.8mm/1.0mm/1.2mm/1.6mm |
0.8mm/1.0mm/1.2mm/1.6mm |
0.8mm/1.0mm/1.2mm/1.6mm/2.0mm |
0.8mm/1.0mm/1.2mm/1.6mm/2.0mm |
1000W Welding parameters
|
Material |
Thickness Single side weld |
Thickness Double side weld |
Thickness Wire weld |
|
Stainless steel |
3mm |
6mm |
2.5mm |
|
Galvanized steel |
3mm |
6mm |
2.5mm |
|
Mild steel |
3mm |
6mm |
2.5mm |
|
Titanium alloy |
3mm |
6mm |
2.5mm |
|
Aluminum |
2mm |
4mm |
1.8mm |
|
Copper |
1mm |
2mm |
0.8mm |
1500W Welding parameters
|
Material |
Thickness Single side weld |
Thickness Double side weld |
Thickness Wire weld |
|
Stainless steel |
4mm |
8mm |
3.5mm |
|
Galvanized steel |
4mm |
8mm |
3.5mm |
|
Mild steel |
4mm |
8mm |
3.5mm |
|
Titanium alloy |
4mm |
8mm |
3.5mm |
|
Aluminum |
3mm |
6mm |
2.8mm |
|
Copper |
1.5mm |
3mm |
1.3mm |
2000W Welding parameters
|
Material |
Thickness Single side weld |
Thickness Double side weld |
Thickness Wire weld |
|
Stainless steel |
5mm |
10mm |
4.5mm |
|
Galvanized steel |
5mm |
10mm |
4.5mm |
|
Mild steel |
5mm |
10mm |
4.5mm |
|
Titanium alloy |
5mm |
10mm |
4.5mm |
|
Aluminum |
4mm |
8mm |
3.5mm |
|
Copper |
2mm |
4mm |
1.8mm |
3000W Welding parameters
|
Material |
Thickness Single side weld |
Thickness Double side weld |
Thickness Wire weld |
|
Stainless steel |
7mm |
14mm |
5.5mm |
|
Galvanized steel |
7mm |
14mm |
5.5mm |
|
Mild steel |
7mm |
14mm |
5.5mm |
|
Titanium alloy |
7mm |
14mm |
5.5mm |
|
Aluminum |
5mm |
10mm |
4.5mm |
|
Copper |
3mm |
6mm |
2.3mm |
